Anchors Selection Guide

POWER-STUD+ SD1 (also known as Stud Anchors, Hilti KB-TZ, Trubolt, and Strong-Bolt)
The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, structural sand-lightweight concrete and concrete over metal deck. The anchor is manufactured with a zinc plated carbon steel body and expansion clip. Nut and washer are included.

power stud sd1

Powers Stud Anchor Specifications

Powers Stud Anchor - Everyday Low Pricing

Powers Stud Anchor - Submittal

_________________________________________________________________________________________________

SMART DI+ DROPINS (also known as Hilti HDI-L and Multi-Set)
The Smart DI+ is an all-steel dropin style anchor. The patented Smart DI+ drop-in design reduces the amount of force required to set the anchor by up to 50%. The cylindrical plug design concentrates more expansion at the bottom of the anchor to maximize performance.

smart di dropin

Powers Smart DI+ Dropin Specifications

Powers Smart Drop-In Anchor - Everyday Low Pricing

Check out the link below for FM Approvals and other information for a variety of Powers' products:

Powers ICC Approved Products

Powers Smart DI+ Dropin- Submittal

_________________________________________________________________________________________________

SNAKE+
The Snake+ anchor is an internally threaded, self-tapping screw anchor designed for performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, structural sand-lightweight concrete and concrete over metal deck. The Snake+ screw anchor is installed with a power tool and a Snake+ setting tool. A hammer is not used for installation.

snake

Powers Snake+ Specifications

Powers Snake+ Submittal Form

_________________________________________________________________________________________________

WEDGE BOLT+ (also known as Hilti Kwik HUS / HUS-EZ, Simpson Titen HD, Red Head Large Dia. Tapcon)
The Wedge-Bolt+ anchor is a one piece, heavy duty screw anchor with a finished hex head. It is simple to install, easy to identify and fully removable. The Wedge-Bolt+ has many features and benefits that make it well suited for many applications in a variety of base materials. The anchor is designed for consistent and reliable performance in cracked and uncracked concrete.

wedge bolt

Powers Wedge-Bolt+ Specifications

Powers Wedge-Bolt+ Submittal Form

_________________________________________________________________________________________________

HOLLOW-SET DROPIN
The Hollow-Set™ Dropin anchor is designed for anchoring in hollow base materials such as hollow concrete block, brick with weep holes and hollow core pre-cast concrete plank. It can also be used in solid base materials. Hollow masonry materials often have a minimum outer wall thickness of 1-1/2". During the drilling process, spalling on the back side of the wall often decreases the wall thickness available for anchoring to 1" or less. The design of the Hollow-Set™ Dropin overcomes this problem.

hollow-set dropin

Powers Hollow-Set Dropin Specifications

Powers Hollow-Set Dropin Submittal Form

_________________________________________________________________________________________________

LOK-BOLT(also known as Hilti HLC, Simpson Sleeve-Al, lRed Head Dynabolt)
The Lok-Bolt™ anchor is a pre-assembled single unit sleeve anchor available in carbon steel and stainless steel which can be used in concrete, block, brick and stone. Extension sleeves are added to create longer lengths.

lok-bolt

Powers Lok-Bolt Specifications

Powers Lok-Bolt Submittal Form

_________________________________________________________________________________________________

MINI DROPIN (also known as Hilti HDI-P Short Drop-In, Red Head RX Drop-In)
The Mini Dropin is a carbon steel, machine bolt anchor for use in shallow embedment applications. Besides, solid concrete and hollow core concrete plank, it can be used in hard stone and solid block. It may also be used in overhead applications.

mini-dropin

Powers Mini Dropin Specifications

Powers Mini Dropin Submittal Form

_________________________________________________________________________________________________

POWER-BOLT(also known as Hilti HSL, Red Head Prima)
The Power-Bolt™ anchor is a heavy duty sleeve style anchor which is vibration resistant and removable. It is available with a finished hex head or flat head with a hex key insert and can be used in concrete, block, brick, or stone.

power-bolt

Powers Power-Bolt Specifications

Powers Power-Bolt Submittal Form

_________________________________________________________________________________________________

STEEL DROPIN (also known as Hilti HDI Drop-In, Red Head RL Drop-In)
The Steel Dropin is an all-steel, machine bolt anchor available in carbon steel and two types of stainless steel. It can be used in solid concrete, hard stone, and solid block. A coil-thread version for forming applications is also available.

steel dropin

Powers Steel Dropin Specifications

Powers Steel Dropin Submittal Form

_________________________________________________________________________________________________

ZAMAC HAMMER-SCREW
The Zamac Hammer-Screw® is a unique, one-step drive anchor featuring a Phillips type head and a screw thread for use in concrete, block, brick or stone. With a body formed from corrosion resistant Zamac alloy and a carbon or stainless steel drive screw, this anchor has been developed by Powers as an improvement over standard nailin anchors.

zamac hammer screw

Powers Zamac Hammer-Screw Specifications

Powers Zamac Hammer-Screw Submittal Form

_________________________________________________________________________________________________

NYLON NAILIN® (also known as Hilti HPS-1 Impact Anchor, Nylon Drive, and Tap-It)
The Nylon Nailin® is a pin drive anchor with a body formed from engineered nylon and nails available in carbon and stainless steel. The anchor can be used in concrete, block, or brick. This anchor is not recommended for applications overhead.

zamac hammer screw

Powers Nylon Nailin Specifications

_________________________________________________________________________________________________

LAG SHIELD
The Lag Shield™ is a screw style anchor designed for use with lag bolts. It is suitable for use in concrete and the mortar joints of block or brick walls. Lag Shield™ anchors are formed from Zamac alloy. In harder masonry materials, short style Lag Shields are used to reduce drilling time. The long style version is used in soft or weak masonry to better develop strength.

lag shield

Powers Lag Shield Specifications

Powers Lag Shield Submittal Form

_________________________________________________________________________________________________

AC100+ GOLD (also known as Hilti HY 150 MAX (MAX-SD), Simpson AT*Red Head Epcon A7*)
The AC100+ Gold is a two-component adhesive anchoring system. The system includes injection adhesive in plastic cartridges, mixing nozzles, dispensing tools and hole cleaning equipment. The AC100+ Gold is designed for bonding threaded rod and reinforcing bar hardware into drilled holes in concrete base materials.

ac100+ gold

Powers AC100+ Gold Specifications

Powers AC100+ Gold Submittal Form

_________________________________________________________________________________________________

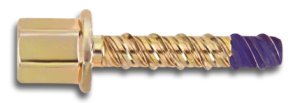

VERTIGO ROD HANGING SYSTEM (also known as Simpson Titen HD Rod Hanger)
Vertigo+ is a one-piece, all steel threaded fastening system for suspending steel threaded rod in pipe hanging, fire protection, electrical conduit and cable-tray applications. They can be installed in a variety of base materials including normal-weight concrete, structural sand-lightweight concrete and concrete over steel deck. Vertigo+ accepts threaded rods and bolts in 1/4", 3/8" and 1/2" diameters. Vertigo+ anchors are designed for simple fast installations and for reliable performance in cracked and uncracked concrete.

vertigo

Powers Vertigo Rod Hanging System Specifications

Powers Vertigo Rod Hanging System Submittal Form

_________________________________________________________________________________________________

HANGERMATE® ROD HANGING SYSTEM
HangerMate® anchors were designed to speed installation of fire sprinkler, HVAC, refrigeration, general piping, and electrical systems. They can also be used to install strut channels, cable trays, suspended ceiling grids, bridle rings and eye-rods. HangerMate anchors can replace beam clamps, powder-actuated stud pins, eye sockets, or ceiling flanges, and eliminate labor-intensive operations such as pre-punching or drilling of steel components.

vertigovertigovertigo

HangerMate Rod Hanging System Specifications

HangerMate Rod Hanging System Everyday Low Price

_________________________________________________________________________________________________

BANG-IT & WOOD KNOCKER(also known as Hilti HCI-WF / HCI-MD, Simpson Blue Banger)
Bang-It Concrete Inserts are designed for installation through pre-drilled metal composite deck (i.e. “pan deck”) used to support a newly poured concrete floor or roof slab. Depending upon the size/color chosen, the protective sleeve protrudes below the surface of the deck allowing overhead attachment of steel threaded rod in sizes ranging from 1/4” to 7/8” in diameter.

Wood-Knocker Concrete Inserts are installed onto wooden forms used to support a newly poured concrete floor slabs, roof slabs or walls. When the forms are stripped, the color-coded flange is easily seen embedded in the concrete surface allowing attachment of steel threaded rod or threaded bolts in sizes ranging from 1/4” to 3/4” in diameter.

bangitwood knocker

Powers Bang-It & Wood Knocker Specifications

Powers Bang-It & Wood Knocker Submittal Form

_________________________________________________________________________________________________

CONCRETE ANCHORS (also known as Hilti Kwik Con, Tapcon, Tappers, and Titan Masonry Screw)

The TAPPER Anchoring System is a family of screw anchors, specially designed drill bits and installation tools designed to meet the needs of most light to medium duty applications in concrete, block and brick. The TAPPER concrete screw anchor is produced in either hex washer head or Phillips flat head styles from Perma-Seal™ coated or zinc plated carbon steel and Type 304 stainless steel.  For heavy duty applications, the 3/8” size is made in zinc plated carbon steel.

Powers Tappers are designed for:

  • Anchoring into Concrete and Masonry Substrates
  • Suitable for Solid and Hollow Base Materials
  • Available in Zinc Plated Carbon Steel, Perma-Seal Carbon Steel, Type 410
    and Type 304 Stainless Steel
  • Hex Head and Phillips Flat Head Designs

bangit

Powers Tapper / Tapcon Submittal Formm and Specifications

Tapcons - Everyday Low Pricing - Hex Head

Tapcons - Everyday Low Pricing - Flat Head

_________________________________________________________________________________________________

RAMSET POWDER-ACTUATED TOOLS
The Ramset Powder Actuated Tool online training combines interactive web-based training techniques and online testing with immediate feedback to provide you a rich learning environment.

Powder-Actuated Tool (PAT) Applications

Powder-Actuated Tool (PAT) Test

Powder-Actuated Tool (PAT) Tes-Printable PDF

_________________________________________________________________________________________________

Not sure which anchor to use for which application? Check out Powers Fasteners Anchor Selection Chart.

Anchor Selection Chart
